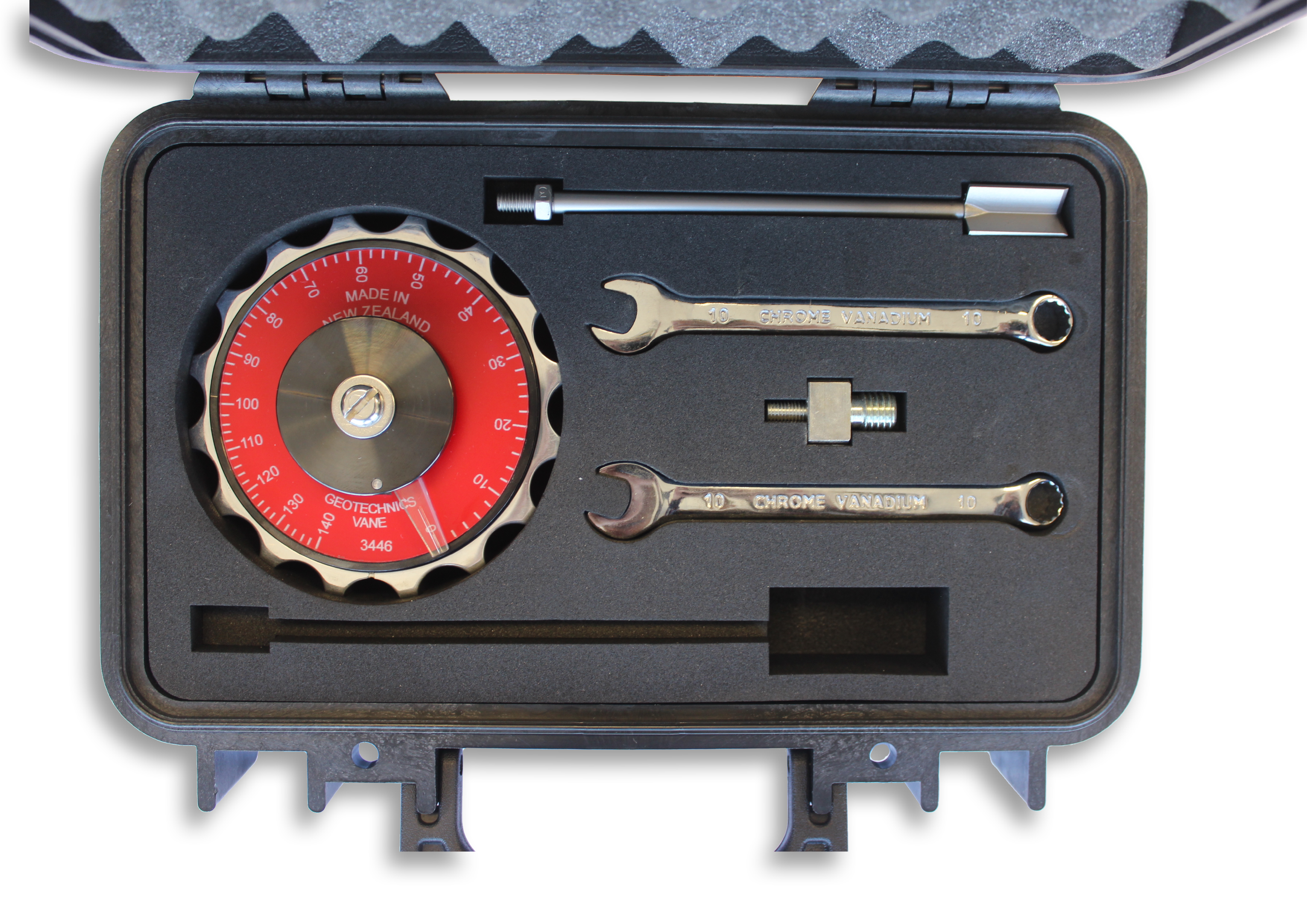

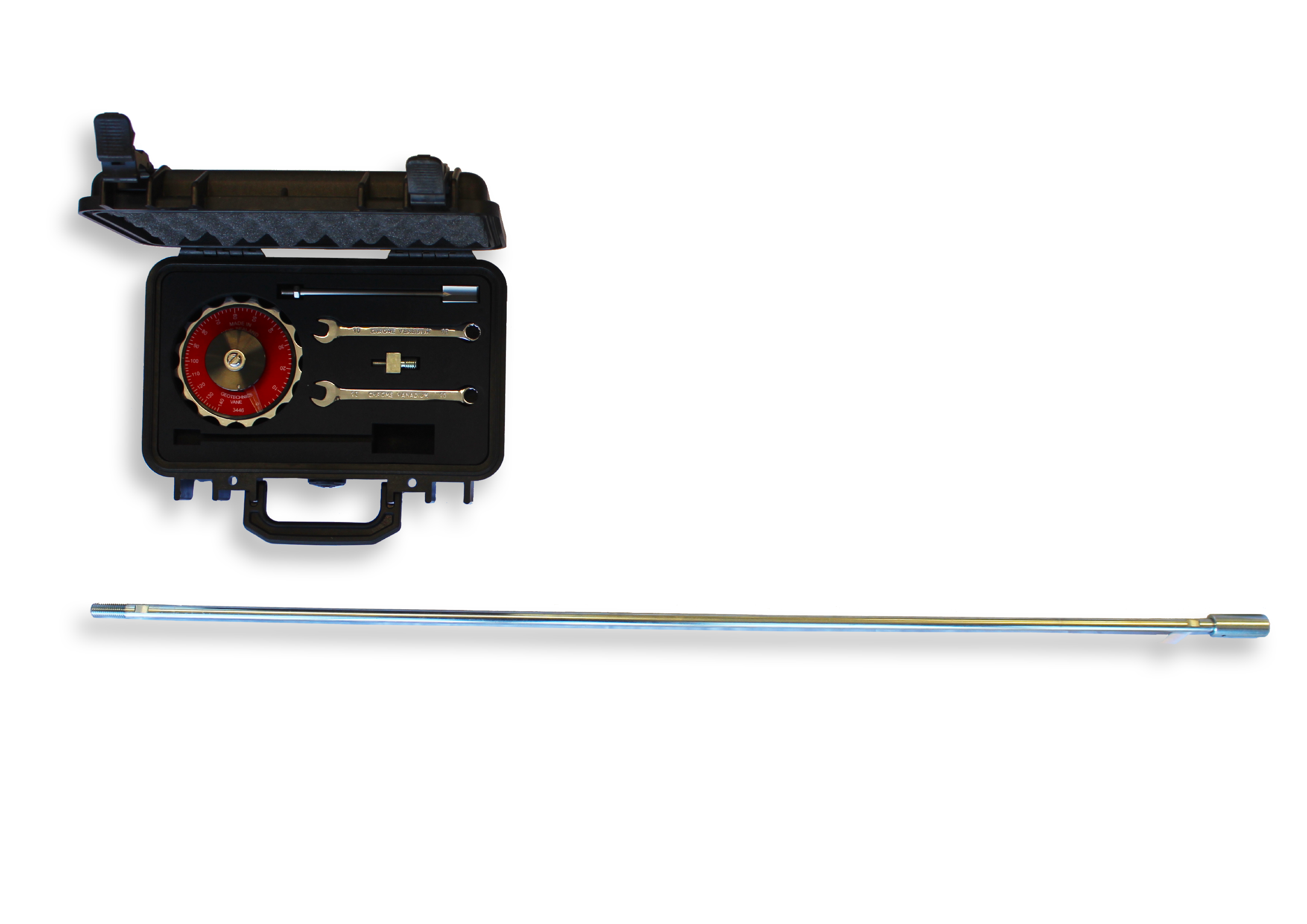

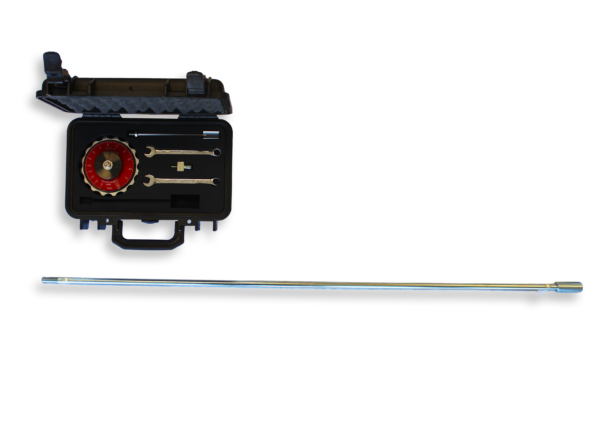

Shear Vane Kit


Portable Shear Vane Tester for the in-situ measurement of the soil shear Strength

Please select the type for more information

Compact, portable, and user-friendly, our handheld field equipment empowers geotechnical engineers and technicians to deliver precise and relevant shear strength results measured in kilopascals (kPa).

When employed accurately, it is capable of assessing the residual shear strength of cohesive soils, such as clays and silts.

The 19mm vane blade offers a range of approximately 180 kPa, with a full range of 170-200 kPa depending on the internal spring. For the 33mm vane blade, the range is approximately 40kPa.


Check the below link for operation:

Hand-held-shear-vane-test-2001-3.pdf (

Additional information

Weight 2.2 kg
Dimensions 0.36 × 0.23 × 0.11 m
Product Type

Complete Kit, Complete Kit to 1m, Complete Kit to 1m (Soft case), Head and blade only, Head, blade and spanners
